DXFP911001 DEWALT Carabiner Standard Self-Locking, Steel, 1/4 in.(6.35 mm.) Turn, .85 in. (21.5 mm.) Gate Opening – ANSI

DXFP911001 DEWALT Carabiner Standard Self-Locking, Steel, 1/4 in.(6.35 mm.) Turn, .85 in. (21.5 mm.) Gate Opening – ANSI

SKU: DXFP911001

STRENGTH:

Meets OSHA and ANSI standards for 3,600 lb. (16kN) gate. Minimum breaking strength 5,000 lbs (23kN).

 DURABILITY:

The galvanized Alloy Steel construction provides superior weather resistance.

FLEXIBILITY:

The 0.85 in. (21.5 mm) gate opening allows this carabiner to fit most applications.





Specification

  • Size: Length 4.70 in. (119 mm.),  Width : 2.70 in. (67 mm.)
  • Gate Opening: .85 In.(21.5 mm.)
  • Weight: .55 lbs.(250 gr.)
  • Worker Capacity Range: 310 lbs.(140 kg)
  • Min. Breaking Strength: 10,000 lbs.(44.5 kN)
  • Materials: Galvanized alloy steel with golden yellow/silver passivation
  • UPC: 00810091652039



DOWNLOAD MANUAL
DOWNLOAD TECH SHEET
DOWNLOAD CERTIFICATE OF CONFORMITY
Add to wishlist Add to compare
SKU: DXFP911001 Categories: ,

Description

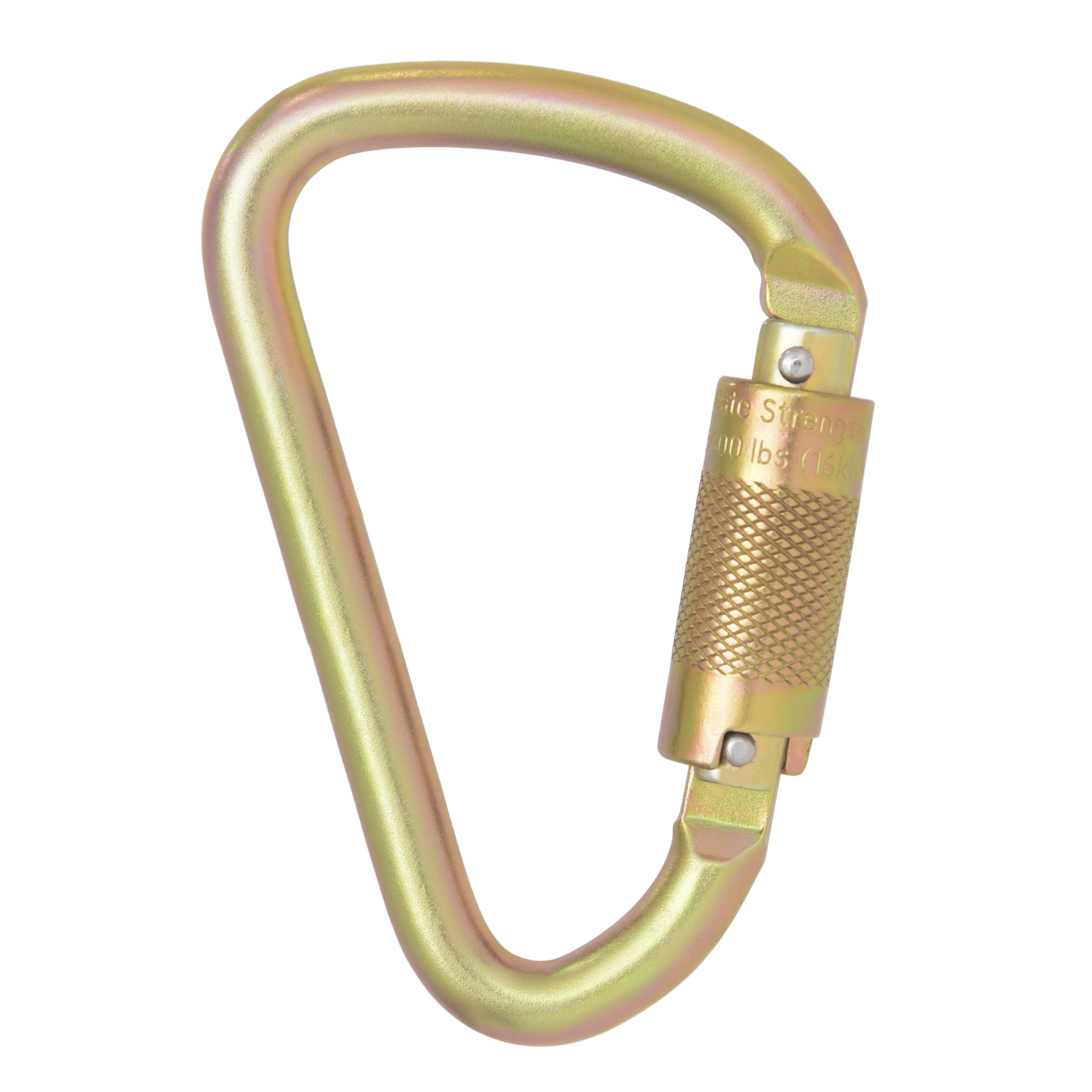

The DEWALT Quarter-Turn, Self-Locking, Bulb Style Galvanized Alloy Steel Carabiner provides flexible solutions for connecting various fall protection equipment. With a 0.85 in (21.5 mm.) gate opening, the 3,600 lb. (16kN) gate strength meets OSHA and ANSI standards for fall protection.





Compliance

Meets ANSI Z359.12-2019, OSHA 1926.502, OSHA 1910.140
